CONCRETE SLAB FOUNDATION SERVICES
Slab Foundation Repair in East Texas
Accu Pier evaluates concrete slab foundations and recommends a repair system only when the visible conditions, floor-elevation pattern, and property observations justify structural work.
Start with an evaluation—not a predetermined repair
Cracks, sticking doors, separated trim, and uneven floors are reasons to investigate, but no single symptom automatically proves a slab needs piers. Accu Pier considers the visible pattern, measured floor elevations where appropriate, drainage, construction, and surrounding site conditions before discussing repair.
If monitoring, drainage correction, plumbing investigation, or another step makes more sense than immediate structural repair, we will explain that before you decide.
Learn more about what to expect from an Accu Pier evaluation.
Slab foundation pier systems offered by Accu Pier
The appropriate system depends on the structure, access, soil response, repair objectives, and conditions found during the evaluation.

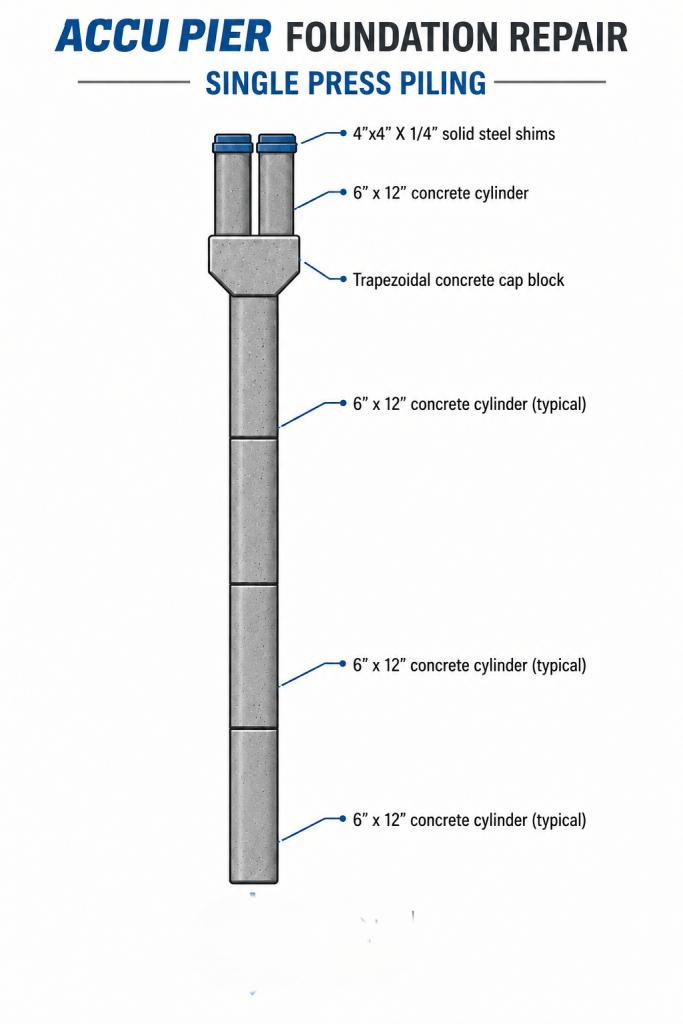

Single Press Piling Piers

A pressed piling system installed at the approved support locations around the slab. Accu Pier evaluates whether this method is appropriate for the structure and site before recommending it.
Steel Piling Piers

A steel piling option used when the evaluation and repair plan call for a steel support system. Placement and installation are based on the conditions and agreed repair scope.

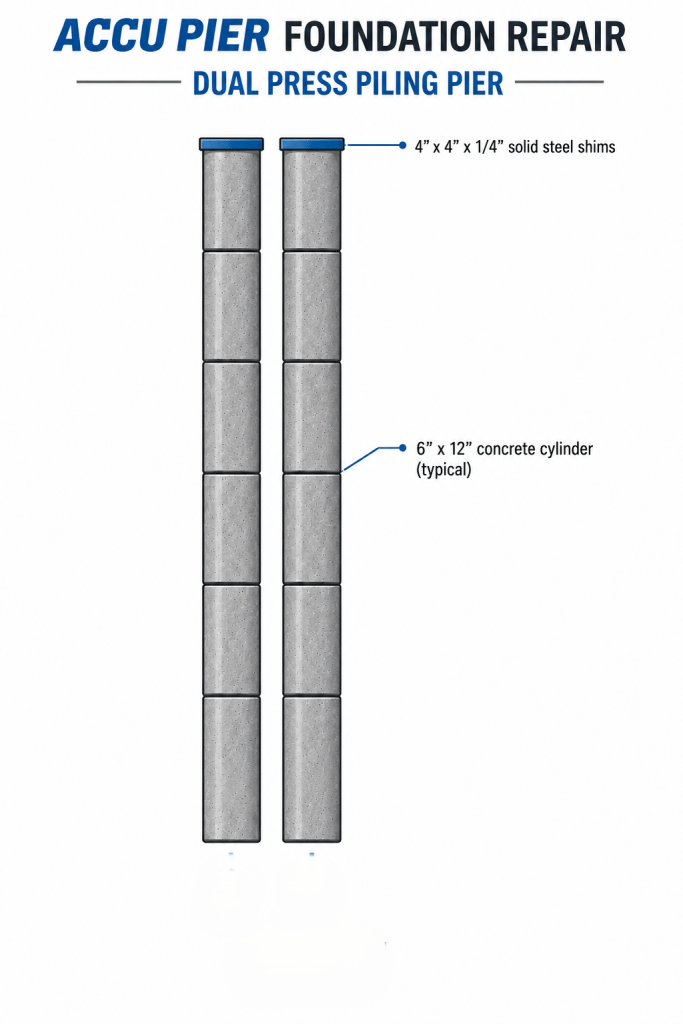

Dual Press Piling Piers

Accu Pier’s dual press piling option provides another approach for supporting selected slab areas. We explain why this method is recommended when it is included in a repair plan.
No pier system should be selected from a website alone. The recommendation should follow a property-specific evaluation.
How Pressed Piling Piers Lift and Stabilize a Slab
This animation shows how 12-inch concrete cylinders are pressed through active clay to load-bearing strata, then capped, shimmed, and used to gradually lift a settled slab toward its planned elevation.
Alternative Methods To Install Interior Piers
We can tunnel under slab foundations to install our press piling piers. Tunneling avoids disruption inside the home and does not create patched concrete in the slab.
Interior piers through tunneling
60′ × 40′ footprint; beams on 10′ centers. Access: 4′ × 6′, about 36″ deep. Tunnel: 36″ × 36″; main run 20′; four 12′ branches; paired piers 6′ apart. 8 interior + 15 exterior = 23 piers. Plan dimensions are to scale. Vertical movement and pier equipment are enlarged for visibility. Transparent slab and soil expose the work beneath the home.
Layout & sequence
The opening is centered on the 40′ end. The main tunnel follows the center beam for 20′. Opposing branches at 10′ and 20′ extend 12′ each along transverse beams. Each branch has two piers, 6′ apart, set 4′ and 10′ from the centerline. The branch extends 2′ past the farther pier. Seven exterior piers are on the 40′ end beam; four are on each adjacent front and back perimeter beam. All 23 pier locations are distinct.
The foundation beam provides the reaction for hydraulically pressing successive 12″ concrete cylinder sections. Piers reach load-bearing strata; actual depth varies. The soil profile is illustrative, with active clay 5–17′ deep. The animation shows the supplied repair example: 4.5″ exterior lift and 2.5″–4.5″ interior lift toward the 0.0 reference.
Place a cap and 20-ton bottle jack at the pressed pier. Lift in controlled groups, monitoring the connected slab. Install and shim the first support cylinder while the jack holds; remove the jack, replace it with the second cylinder, and shim tight. Then backfill the tunnels and access opening. Final lift depends on the conditions at the home.
Common slab foundation symptoms
- Exterior brick or masonry cracking
- Interior drywall cracks or separated trim
- Doors or windows that begin sticking
- Noticeable floor slope or elevation changes
- Gaps where walls, ceilings, or cabinets meet
- Drainage, erosion, or moisture changes near the foundation
These conditions should be evaluated as a complete pattern. Some are caused by normal material movement, drainage, plumbing, framing, or other non-foundation conditions.
Clear recommendations before work begins
When slab repair is justified, Accu Pier explains the observed conditions, proposed support locations, recommended pier system, and repair scope. Homeowners have an opportunity to ask questions before authorizing work.
Accu Pier has served East Texas homeowners since 2005 and carries general liability insurance for our foundation-repair operations. Read why homeowners choose Accu Pier.
Request a slab foundation evaluation
Get a measured, straightforward assessment before deciding whether repair is appropriate.
